When adjusting the tap changer of a transformer for voltage regulation, a common rule of thumb is "adjust high to high, adjust low to low." This principle refers to the relationship between the transformer's input (primary) voltage and the position of its tap changer. To understand this concept, it's essential to first grasp how a transformer's tap changer works.

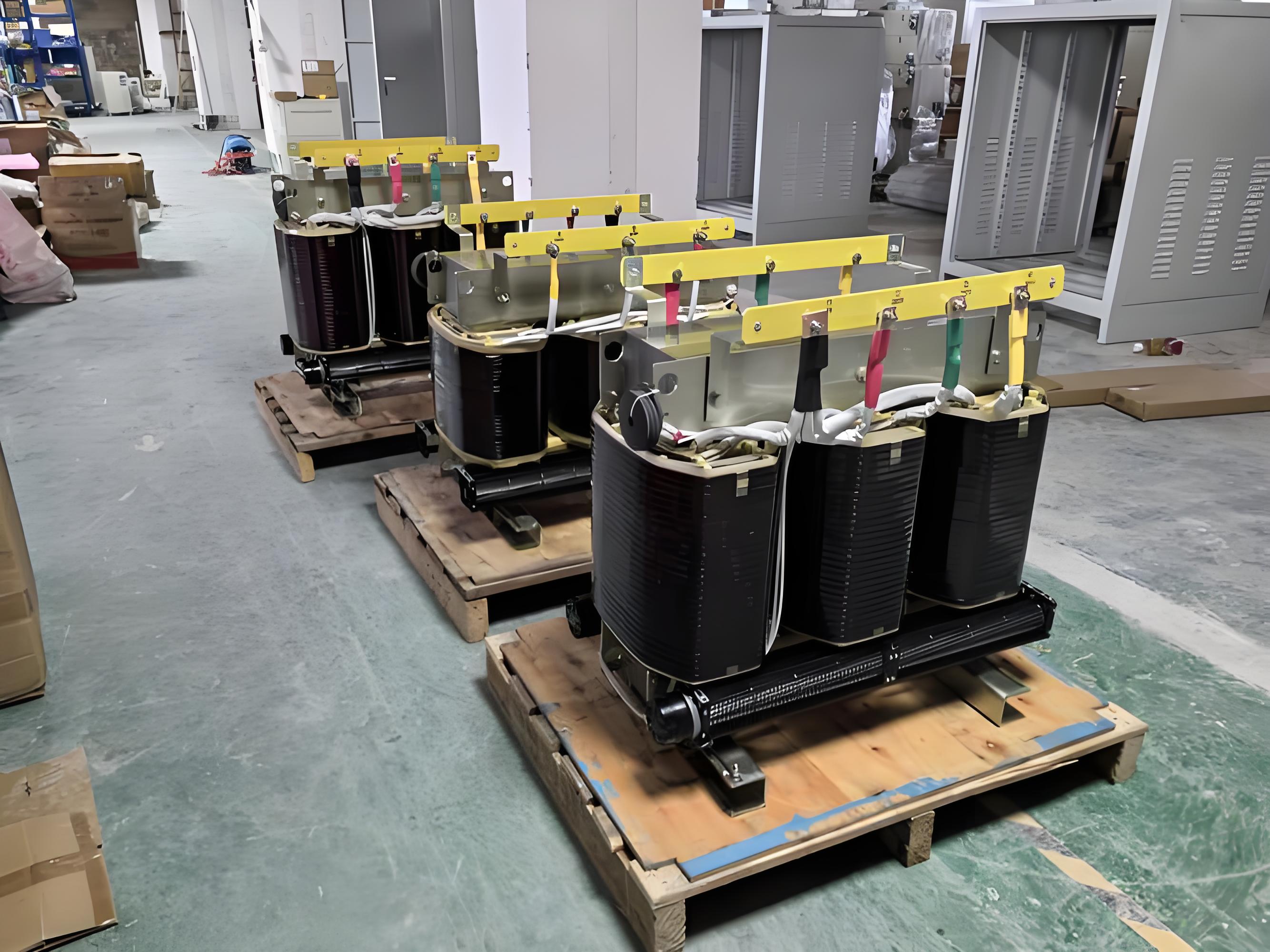

A transformer tap changer adjusts the number of turns in the primary winding, thereby altering the transformer's turns ratio. The turns ratio directly influences the secondary (output) voltage. The fundamental transformer equation is:
V₁ / V₂ ≈ N₁ / N₂
Where V₁ and V₂ are the primary and secondary voltages, and N₁ and N₂ are the number of turns in the primary and secondary windings, respectively.

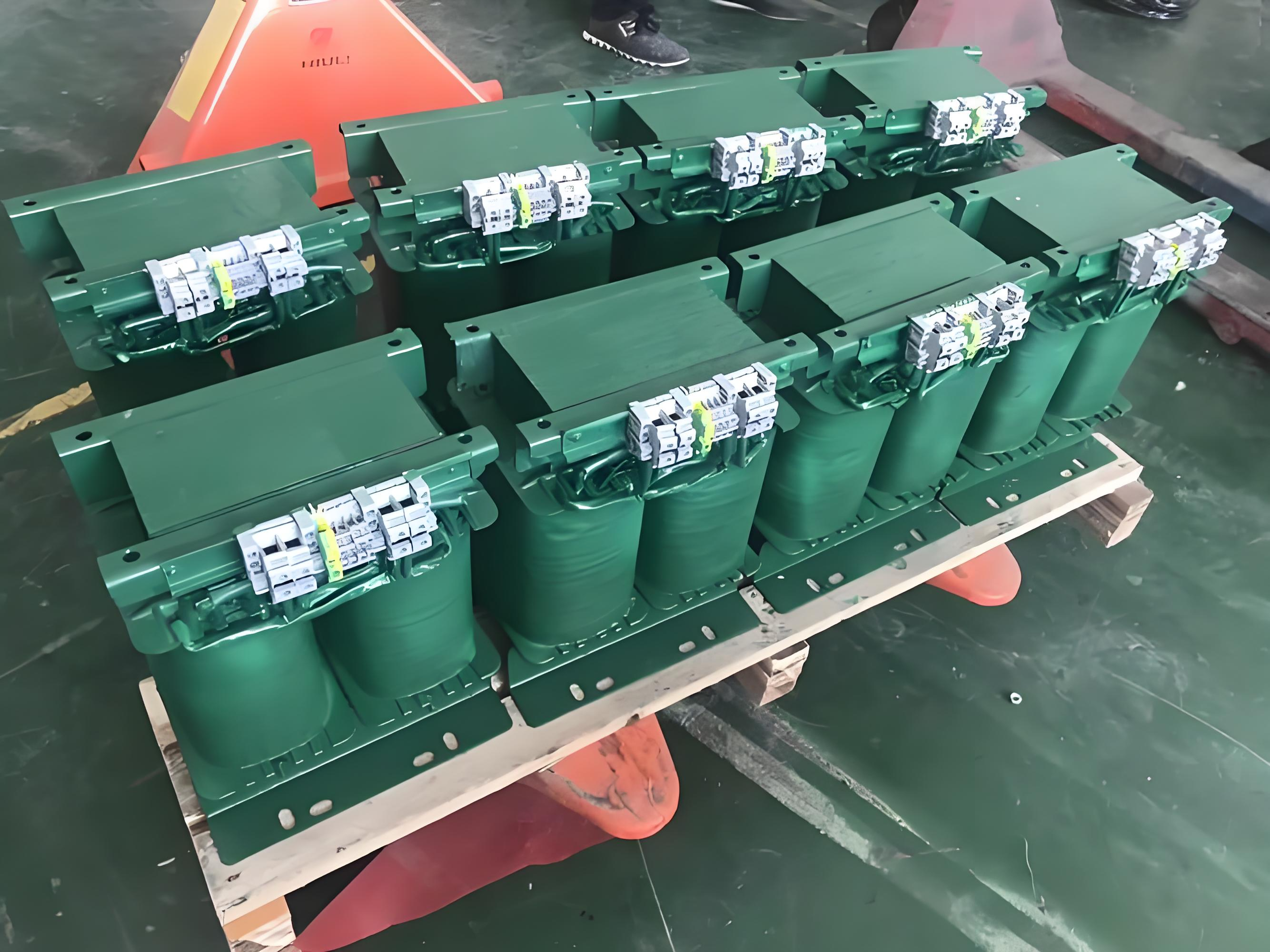

"Adjust High to High" (Increase Tap for High Input Voltage): If the primary voltage (V₁) is higher than the rated value, the secondary voltage (V₂) will also tend to be higher than desired. To counteract this and bring the secondary voltage back down to the target level, the number of primary turns (N₁) needs to be increased. This is achieved by switching the tap changer to a "higher" tap position (e.g., from +2.5% to +5%). Increasing N₁ increases the turns ratio (N₁/N₂), which reduces the secondary voltage (V₂) for a given primary voltage (V₁), thus regulating it downward.
"Adjust Low to Low" (Decrease Tap for Low Input Voltage): Conversely, if the primary voltage (V₁) is lower than the rated value, the secondary voltage (V₂) will also be lower than required. To raise the secondary output voltage, the number of primary turns (N₁) needs to be decreased. This is done by switching the tap changer to a "lower" tap position (e.g., from -2.5% to -5%). Decreasing N₁ reduces the turns ratio (N₁/N₂), which increases the secondary voltage (V₂) for a given (low) primary voltage (V₁), thus regulating it upward.
In summary, the principle "adjust high to high, adjust low to low" means:
