Calculation and Selection of Transformers

I. Introduction

Transformers are one of the most essential components in power systems, widely used in transmission and distribution networks, industrial control systems, and building electrical installations. Their primary function is to transfer electrical energy between different voltage levels through electromagnetic induction. Accurate calculation and appropriate selection of transformers not only ensure the safe and stable operation of the system but also directly affect energy efficiency, investment costs, and long-term maintenance expenses.

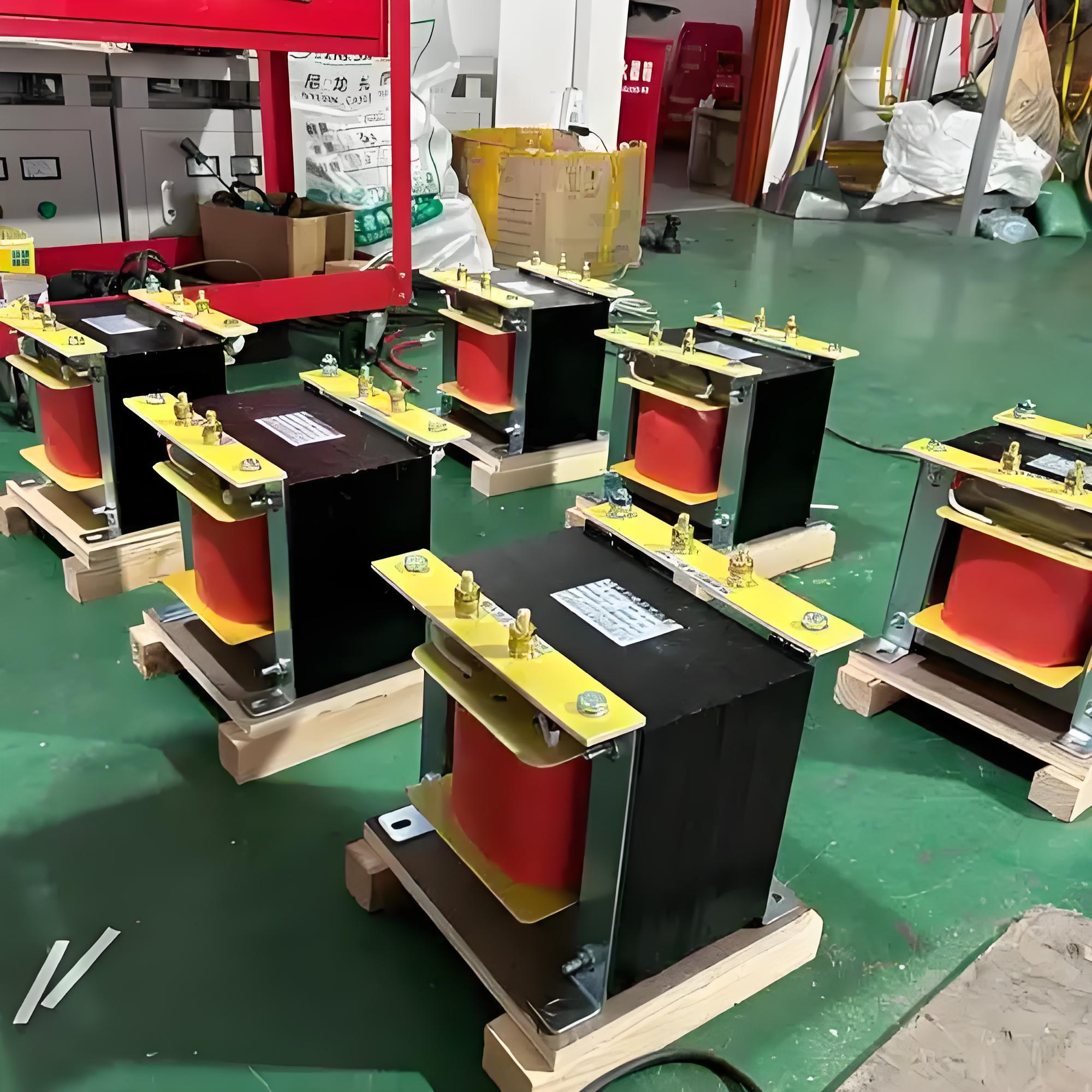

II. Basic Working Principle of Transformers

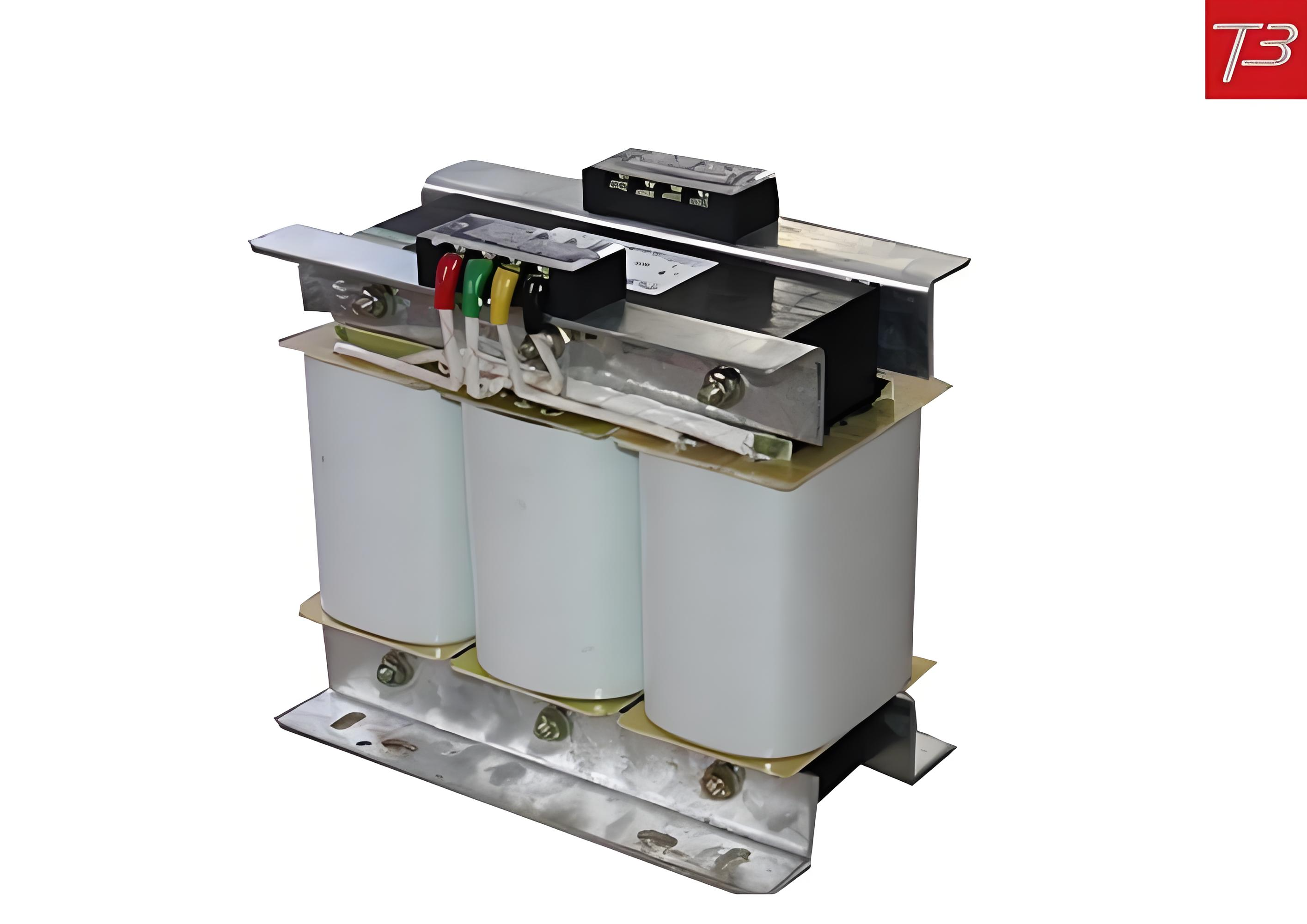

A transformer consists of a core made of magnetic material and two or more windings—typically a primary winding and one or more secondary windings. When alternating current flows through the primary winding, it generates a varying magnetic field in the core, which induces a voltage in the secondary winding. Depending on the ratio of turns between the windings, the transformer can either step up (more turns in secondary) or step down (fewer turns in secondary) the voltage.

Key parameters of transformers include:

• Rated capacity (kVA)
• Primary/secondary voltage (V or kV)
• Short-circuit impedance
• No-load loss and load loss
• Cooling method (e.g., dry-type, oil-immersed)

III. Methods for Calculating Transformer Capacity

1. Basic Capacity Calculation Formula
   The transformer's capacity should meet the total apparent power of all loads with an appropriate safety margin. A commonly used formula is:

   $$S_{\text{transformer}}\ge K\times S_{\text{total load}}$$

   Where:

   • $S_{\text{transformer}}$: Transformer rated capacity (kVA)
   • $S_{\text{total load}}$: Total apparent power of all loads (kVA)
   • $K$: Safety factor, usually taken as 1.2–1.3 to account for future expansion or unexpected loads

2. Impact of Motor Starting
   In systems with high-power motors, the starting current can reach 5–7 times the rated current, significantly increasing the instantaneous load. An empirical formula can be applied:

   $$S_{\text{transformer}}\ge 1.5\times (\text{Maximum motor capacity}+0.6\times \text{Other motor capacities})$$

3. Effect of Power Factor
   If the total active power $P$ and power factor $\cos \phi$ are known, the apparent power can be calculated using:

   $$S=\frac{P}{\cos \phi }$$

4. Reserving for Future Expansion
   During the design phase, future load growth should be considered. It is generally recommended to reserve more than 20% additional capacity to avoid early replacement and additional costs.



IV. Key Factors in Transformer Selection

1. Voltage Level Matching
   The primary and secondary voltages must match the system voltage. Common combinations include 10kV/0.4kV, 35kV/10kV, etc.

2. Cooling Method Selection
   Based on the installation environment:

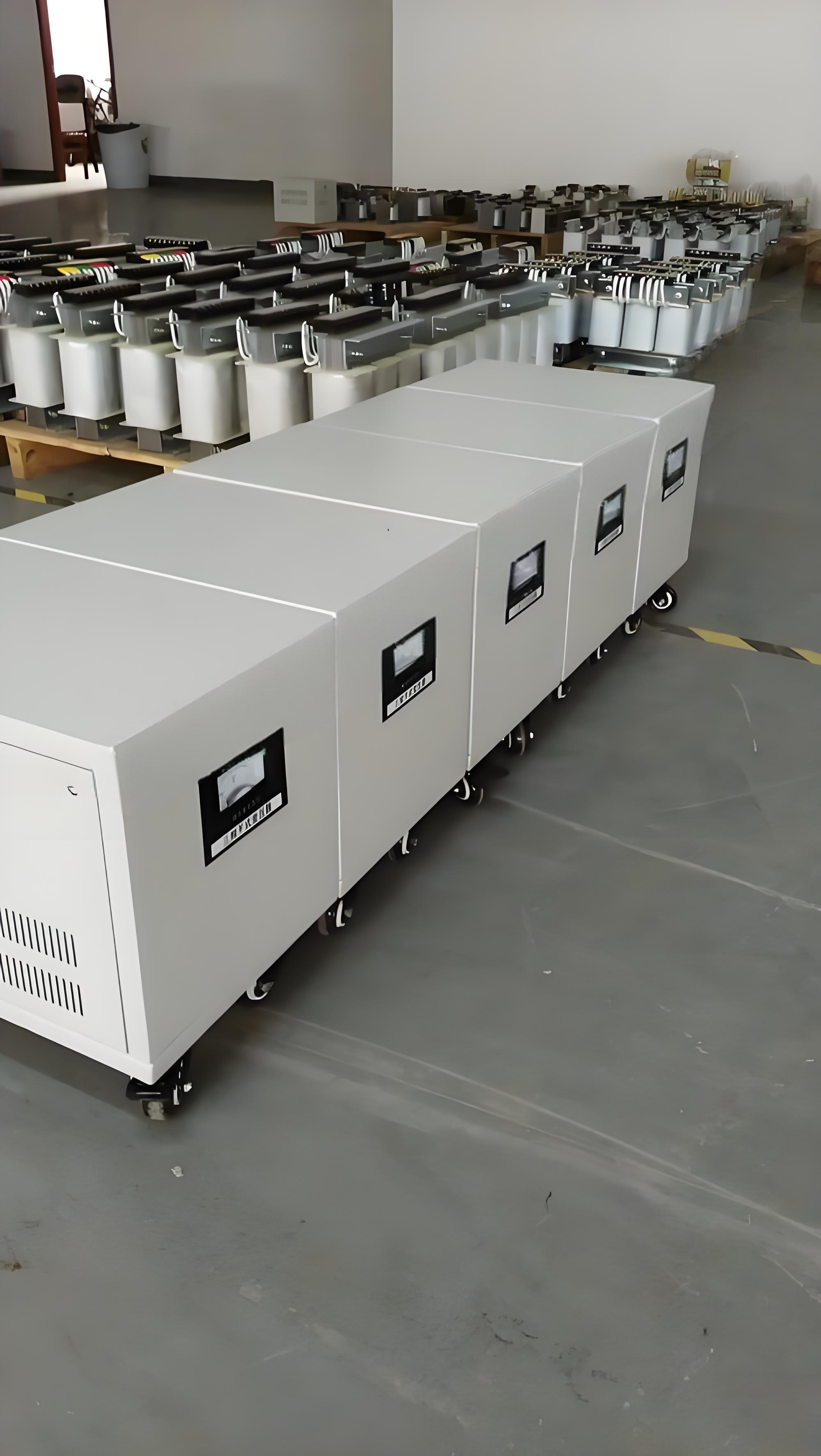

   • Dry-type transformers: Suitable for indoor use and fire safety requirements
   • Oil-immersed transformers: Suitable for outdoor or heavy-duty applications with better heat dissipation but more complex maintenance

3. Insulation and Protection Ratings
   Industrial environments often use F-class (155°C) or H-class (180°C) insulation. Protection ratings should be at least IP20; for outdoor or humid environments, IP54 or higher is recommended.

4. Voltage Regulation Method
   Whether to include on-load tap changing (OLTC) depends on system stability requirements. OLTC is recommended for applications with frequent voltage fluctuations or high power quality demands.

5. Energy Efficiency Performance
   High-efficiency, low-loss transformers such as:

   • S11 and S13 series silicon steel transformers
   • Amorphous alloy transformers (with extremely low no-load losses) These types significantly reduce operating costs and align with national energy-saving policies.

6. Short-Circuit Impedance and Protection Coordination
   The short-circuit impedance affects the magnitude of fault currents and must be coordinated with protective devices (e.g., circuit breakers, fuses) to ensure rapid disconnection during faults.

V. Case Study

A new industrial park plans to install a main transformer with a projected total load of 1200 kW and a power factor of 0.8. A 20% increase in load is expected over the next three years.

• Calculate Apparent Power:

  $$S=\frac{P}{\cos \phi }=\frac{1200}{0.8}=1500\text{kVA}$$

• Considering Safety Margin and Future Expansion:

  $$S_{\text{transformer}}=1500\times 1.2\times 1.2=2160\text{kVA}$$

Therefore, a 2500 kVA dry-type transformer with F-class insulation, IP23 protection rating, off-circuit voltage regulation, and equipped with temperature control and ventilation systems is recommended to ensure long-term reliable operation.

VI. Conclusion

As a core component in power systems, the capacity calculation and selection of transformers are directly related to the system’s safety, economy, and sustainability. In practical engineering, designers should consider specific application scenarios, load characteristics, environmental conditions, and future development plans to make scientifically sound choices. With the advancement of smart grids and green energy, the intelligence, energy efficiency, and environmental friendliness of transformers will become key directions for future development.
