How to Select a Three-Phase Isolation Transformer: A Detailed Explanation
By azheMay 1st, 2025309 views
Selecting the appropriate three-phase isolation transformer is a critical process that requires careful consideration of technical specifications, application requirements, and environmental factors. Below is a comprehensive guide to help engineers and decision-makers choose the right transformer for their specific needs.
1. Determine the Application Requirements
The first step in selecting a three-phase isolation transformer is to clearly define its intended application. Different applications impose unique demands on the transformer's design and performance. Common applications include:
Industrial Machinery: Requires robust transformers capable of handling high loads and mitigating harmonic distortions.
Medical Facilities: Demands transformers with low leakage current and high reliability to ensure patient safety.
Data Centers: Needs transformers with excellent noise suppression and voltage regulation to protect sensitive IT equipment.
Renewable Energy Systems: Requires transformers compatible with inverters and capable of isolating renewable energy sources from the grid.
Power Distribution: Involves transformers designed for efficient operation in substations and distribution networks.
Understanding the application helps determine key parameters such as power rating, voltage levels, and cooling requirements.
2. Evaluate the Power Rating (kVA)
The power rating of the transformer, expressed in kilovolt-amperes (kVA), must match the load requirements. To calculate the required kVA:
kVA=10003×VL×IL
Where:
VL = Line-to-line voltage (in volts)
IL = Line current (in amperes)
Ensure the transformer's rated capacity exceeds the maximum expected load to avoid overloading and overheating. Additionally, consider future load growth and select a transformer with some margin for expansion.
3. Specify Input and Output Voltage Levels
Determine the required primary (input) and secondary (output) voltage levels based on the system configuration. Common configurations include:
Delta-Delta (Δ-Δ): Suitable for balanced three-phase systems without neutral connections.
Wye-Wye (Y-Y): Provides a neutral point for single-phase loads.
Delta-Wye (Δ-Y): Converts delta-connected input to wye-connected output, commonly used in distribution systems.
Wye-Delta (Y-Δ): Converts wye-connected input to delta-connected output, often used for stepping down voltages.
Ensure the transformer's voltage ratings are compatible with the supply and load requirements.
4. Assess Efficiency and Losses
Transformer efficiency is a crucial factor, especially for continuous operation. Key losses to consider include:
Core Losses: Caused by hysteresis and eddy currents in the magnetic core.
Copper Losses: Resulting from resistance in the windings.
High-efficiency transformers reduce energy consumption and operating costs. Look for transformers with low no-load and load losses, particularly for applications requiring 24/7 operation.
5. Consider Insulation Type and Cooling Method
The choice between dry-type and oil-immersed transformers depends on the application and environmental conditions:

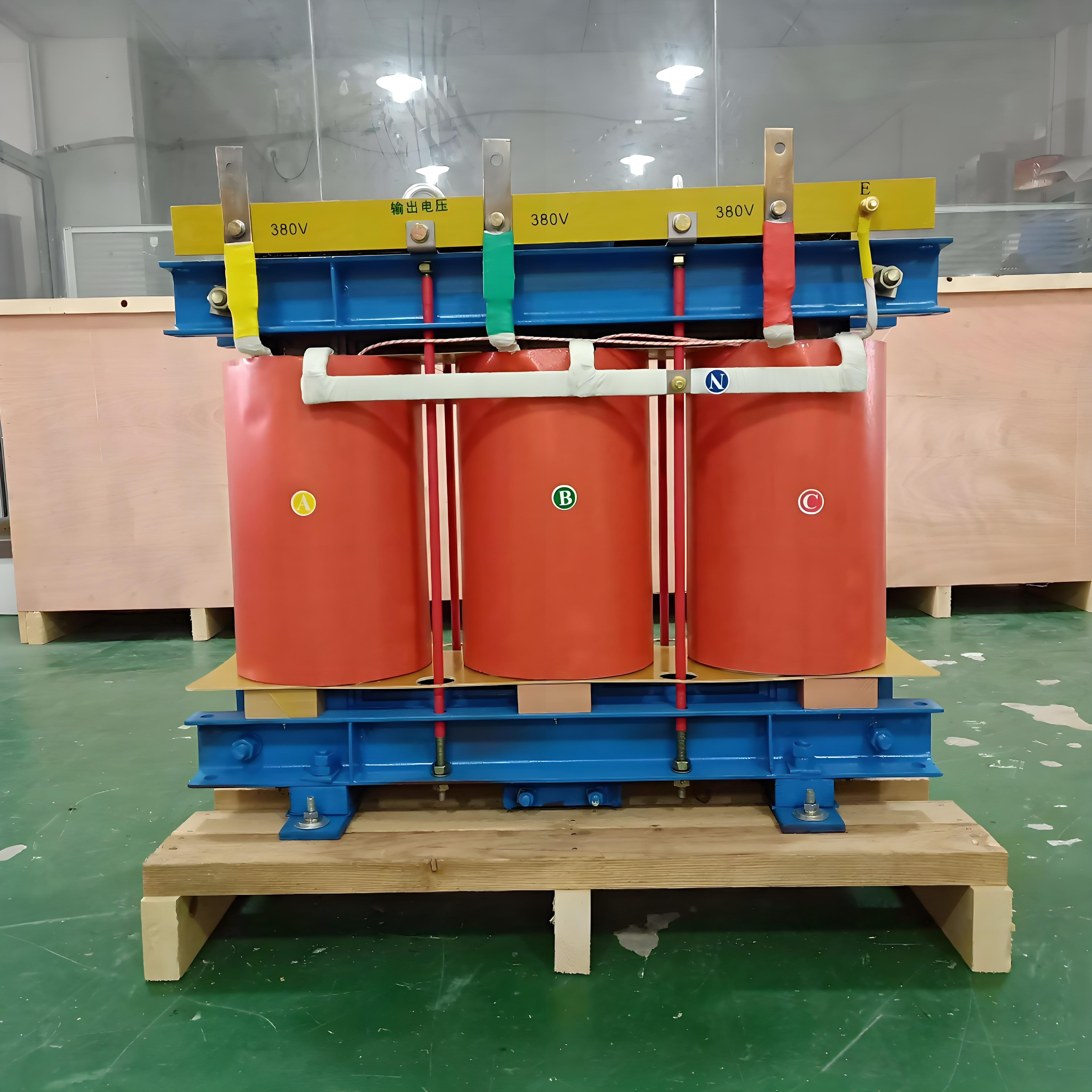

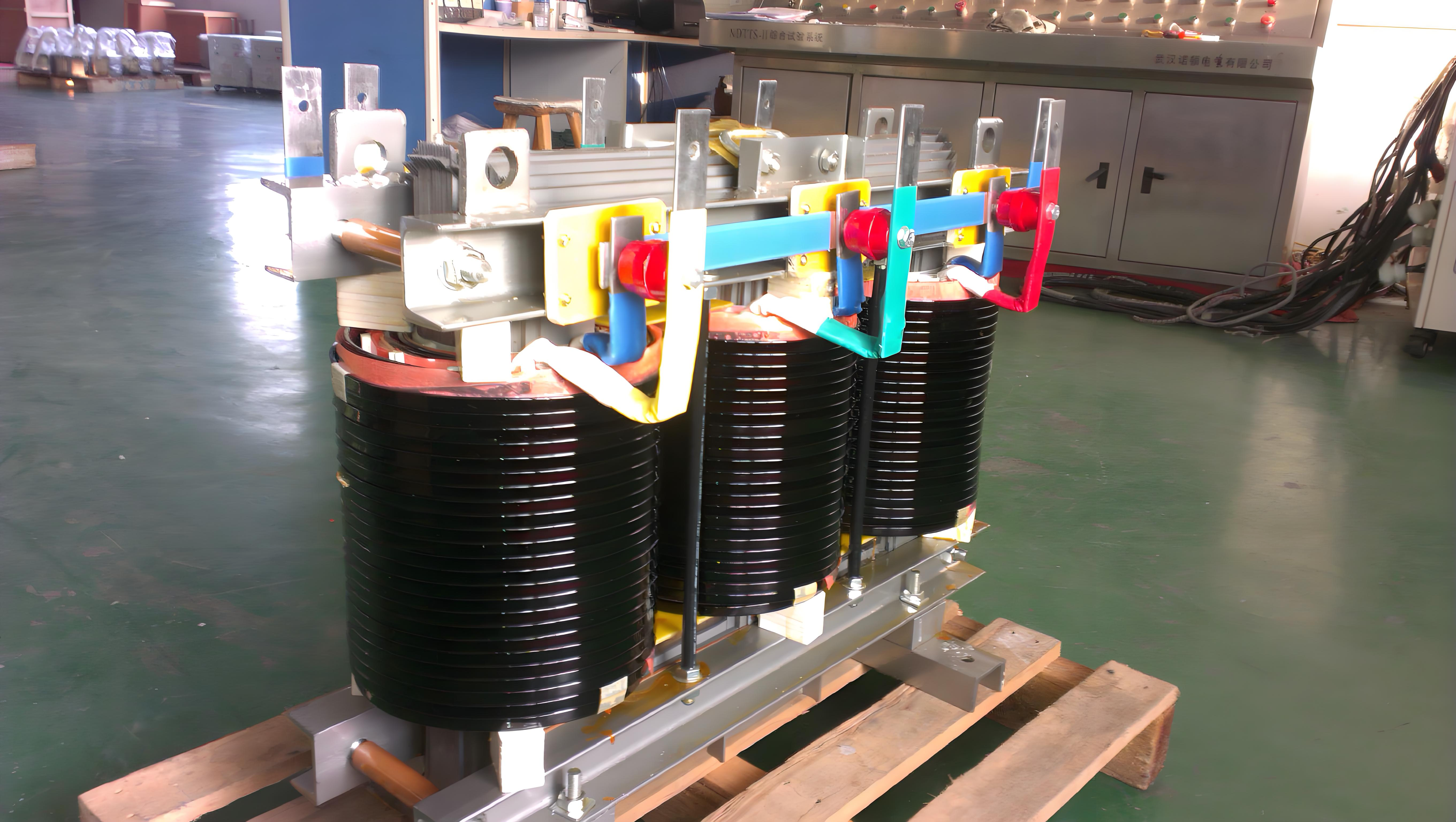

Dry-Type Transformers:
Use air or resin-based insulation.
Ideal for indoor installations, especially in fire-sensitive environments like hospitals and data centers.
Require minimal maintenance but may have lower capacity limits compared to oil-immersed types.
Oil-Immersed Transformers:
Use transformer oil for cooling and insulation.
Suitable for high-capacity applications and outdoor installations.
Offer superior cooling performance but require regular oil testing and maintenance.
Additionally, evaluate the cooling method:
Natural Air Cooling (AN): Suitable for low-to-medium capacity transformers.
Forced Air Cooling (AF): Enhances cooling efficiency for higher-capacity units.
Oil-Immersed Forced Cooling: Used in large transformers to manage heat dissipation effectively.
6. Analyze Environmental Conditions
Environmental factors play a significant role in transformer selection:
Ambient Temperature: Ensure the transformer can operate reliably within the expected temperature range. High ambient temperatures may require derating the transformer's capacity.
Humidity and Contaminants: For humid or dusty environments, select transformers with enhanced protection (e.g., IP-rated enclosures).
Altitude: At higher altitudes, reduced air density affects cooling efficiency, necessitating adjustments in transformer design.
7. Verify Safety and Compliance Standards
Ensure the selected transformer complies with relevant industry standards and regulations. Examples include:
IEC 60076: International standard for power transformers.
IEEE C57: Standard for liquid-immersed and dry-type transformers.
UL 1561: Safety standard for dry-type transformers in North America.
NEMA ST-20: Guidelines for electrical insulation systems.
Compliance ensures the transformer meets safety, performance, and environmental requirements.
8. Evaluate Noise Levels
In noise-sensitive environments (e.g., hospitals, residential areas), select transformers with low noise emissions. Noise is primarily caused by magnetostriction in the core and mechanical vibrations. Dry-type transformers generally produce less noise compared to oil-immersed types.
9. Consider Physical Size and Installation Constraints
The physical dimensions and weight of the transformer must align with available installation space and structural capacity. Ensure adequate clearance for ventilation and maintenance access. For retrofit projects, verify compatibility with existing infrastructure.
10. Budget and Lifecycle Costs
While upfront cost is an important consideration, evaluate the total lifecycle costs, including:
Initial Purchase Cost: Typically higher for dry-type transformers.
Maintenance Costs: Oil-immersed transformers require more frequent maintenance.
Energy Costs: High-efficiency transformers reduce long-term energy expenses.
Replacement Costs: Consider the transformer's expected lifespan and warranty terms.
