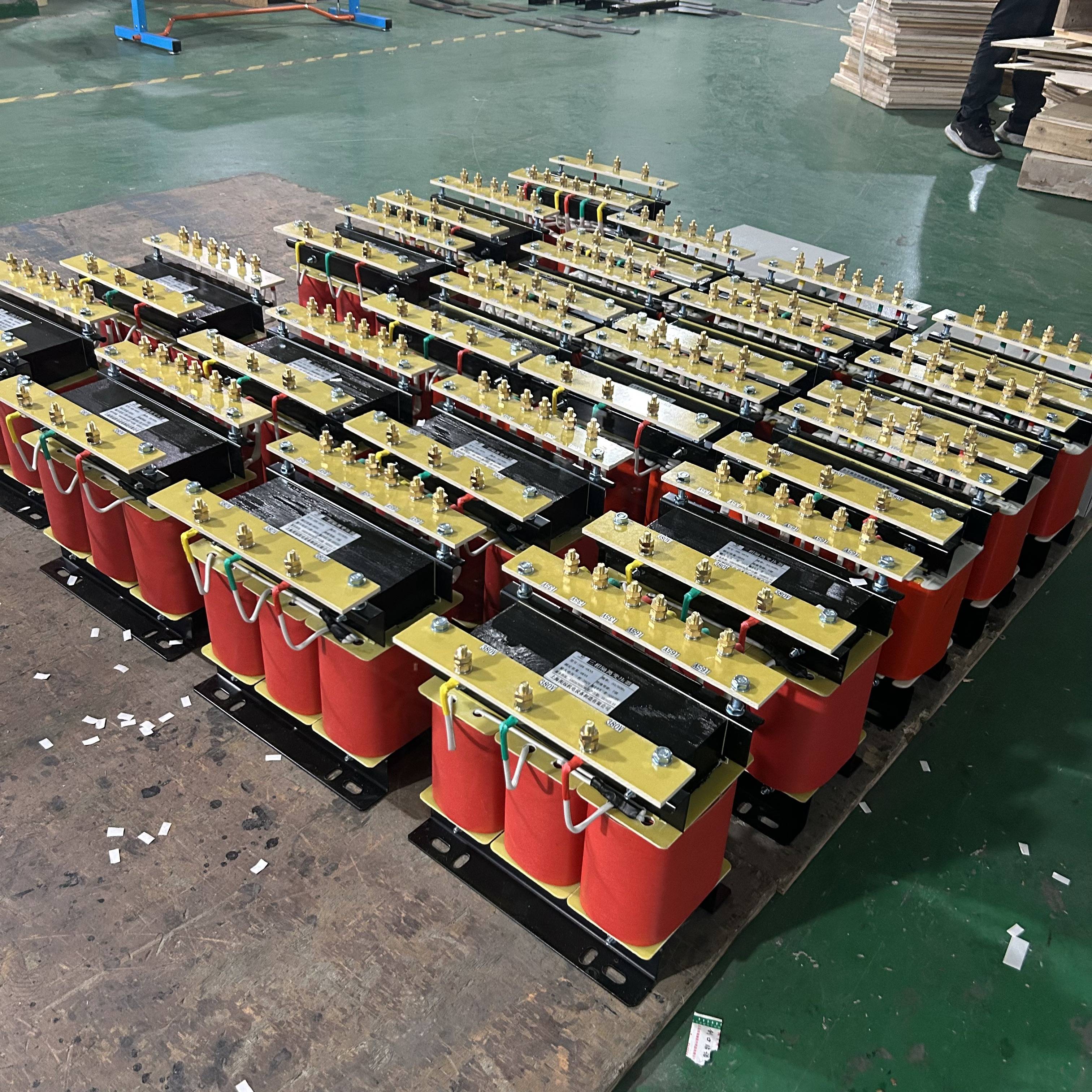

Dry-type transformers are critical components in electrical systems, known for their robust design and maintenance-free operation. Unlike oil-immersed transformers, they use air as the cooling medium, making them safer and more environmentally friendly. Below is a detailed overview of the structure and main components of dry-type transformers.

The core is typically made from high-permeability silicon steel laminations or amorphous alloy materials. These materials minimize core losses (hysteresis and eddy current losses) and ensure efficient magnetic flux transfer. The core is often constructed with a step-lap joint to reduce noise and vibration.

2. Windings

The windings are usually made from copper or aluminum conductors, depending on the application requirements. They are wound around the core and insulated using high-quality insulating materials such as glass fiber, epoxy resin, or Nomex paper. Windings can be configured in various ways, including single-phase, three-phase, star, delta, or zigzag connections, depending on the specific application.

3. Insulation System

The insulation system plays a crucial role in ensuring the transformer's reliability and longevity. It includes:

• Ground Insulation: Protects the windings from ground faults.
• Turn-to-Turn Insulation: Prevents short circuits between individual turns within the winding.
• Phase-to-Phase Insulation: Ensures safe separation between different phases in multi-phase transformers. Epoxy resin is commonly used as an encapsulant, providing excellent electrical insulation and mechanical protection.

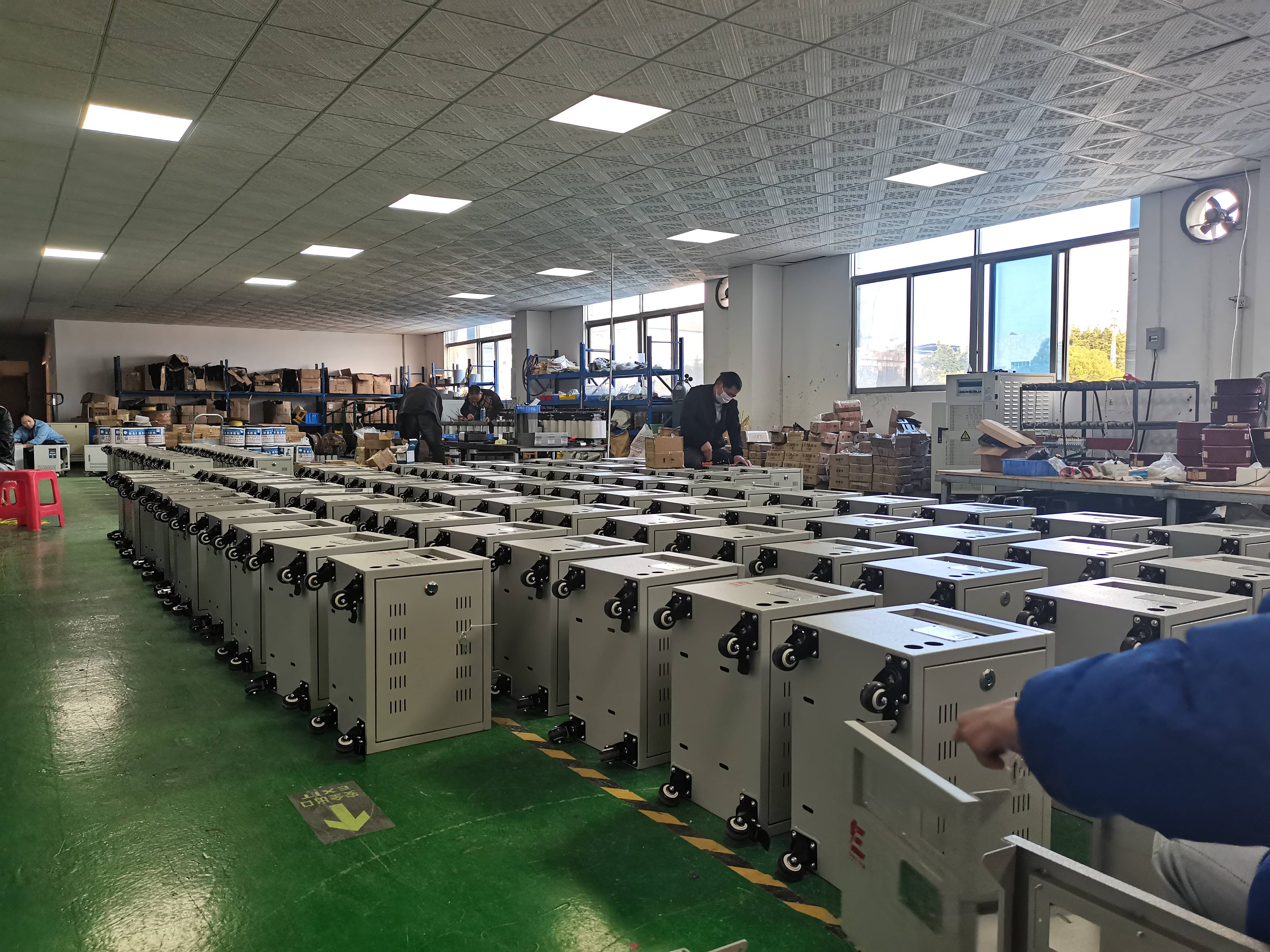

4. Enclosure

The enclosure protects the internal components from environmental factors such as dust, moisture, and mechanical damage. It is typically made from non-conductive materials like fiberglass-reinforced polyester (FRP) or sheet metal coated with anti-corrosion treatments. The enclosure also aids in heat dissipation by allowing airflow through vents or fans.

5. Cooling System

Dry-type transformers employ natural air cooling (AN) or forced air cooling (AF). AN systems rely on natural convection, while AF systems use fans to enhance cooling efficiency. The cooling system ensures that the temperature rise within the transformer remains within acceptable limits, preventing overheating and extending the life of the transformer.

6. Terminals and Connections

High-voltage and low-voltage terminals are provided for connecting the transformer to the electrical network. These terminals are often equipped with bushings or connectors designed to handle the rated voltage and current safely. Proper connection methods are essential to avoid electrical failures and ensure reliable operation.

7. Protection Devices

Various protection devices are integrated into dry-type transformers to safeguard against faults and overloads. These include:

• Thermal Sensors: Monitor the temperature of the windings and trigger alarms or shut down the transformer if temperatures exceed safe limits.
• Overcurrent Relays: Protect against excessive currents that could damage the transformer.
• Surge Arresters: Protect against transient overvoltages caused by lightning strikes or switching surges.
•

8. Mounting and Support

Dry-type transformers are often mounted on skids or frames for easy installation and transportation. Vibration dampeners may be included to minimize mechanical vibrations during operation, enhancing stability and reducing noise.

Conclusion

Understanding the structure and components of dry-type transformers is essential for engineers, technicians, and anyone involved in their installation, operation, and maintenance. Their robust design, combined with advanced materials and cooling techniques, makes them a reliable choice for a wide range of applications, from industrial facilities to commercial buildings.

This comprehensive guide should provide valuable insights for anyone looking to delve deeper into the world of dry-type transformers. Feel free to share this information on your blog to educate others about these important electrical devices.
